Top triple clamp that will fit the 650.

Postby WnRn » Tue Mar 24, 2015 4:34 am

Anyone know of any other top triple clamp that will fit the 650 without major surgery?

I want to be able to fit different bar risers. The clamp that is on my 650Z is molded into the top clamp.

Spyug53
Posts: 75
Joined: Sat Dec 07, 2013 11:30 am
Location: Hamilton, Ontario, Canada

Re: Top triple clamp that will fit the 650.

Postby Spyug53 » Tue Mar 24, 2015 9:02 am

Just a suggestion but how about cutting them off and filling things flush. Then drill for the new risers.

I don't know if that is possible as I haven't had the clamp off to look at the underside, but I have seen this done on other bikes.

Cheers
"Slowest beasts are always strongest and Manage to live the longest".
"If it's no Scottish, it's crap".

User avatar
WnRn
Posts: 40
Joined: Mon Feb 23, 2015 6:23 am
Location: Central Coast NSW AUstralia
Contact:

Re: Top triple clamp that will fit the 650.

Postby WnRn » Tue Mar 24, 2015 2:01 pm

I don't believe you can shave them down. Reason being because of what they are like underneath....


jcasey007
Posts: 225
Joined: Sun Jan 13, 2013 3:38 pm
Location: Stratford Upon Avon - UK

Re: Top triple clamp that will fit the 650.

Postby jcasey007 » Wed Mar 25, 2015 1:55 am

you can take the standard top tree and shave off the cast handlebar lugs. I did mine so I could fit 1 inch drag bars with 2 inch risers, here's a picture


User avatar
WnRn
Posts: 40
Joined: Mon Feb 23, 2015 6:23 am
Location: Central Coast NSW AUstralia
Contact:

Re: Top triple clamp that will fit the 650.

Postby WnRn » Wed Mar 25, 2015 4:07 am

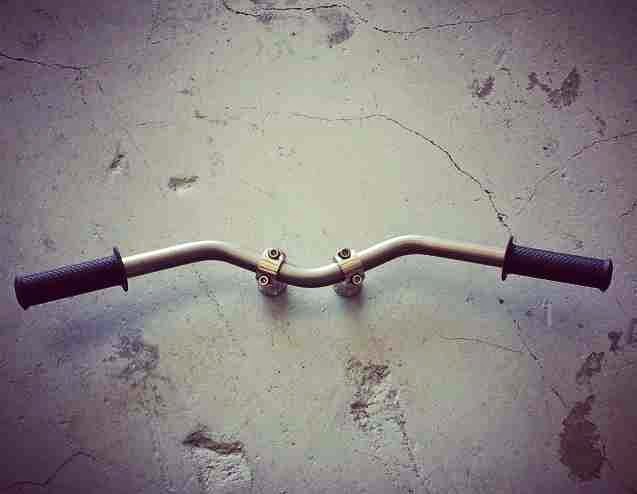

These are the bars I want to fit.. From Zombie Performance.

I would still need to drill holes in the clamp for the rider bolts to go through. The riser are turned due to the curve of the bars. A feature i love the look of. So shaving down the clamps might work.


jcasey007
Posts: 225
Joined: Sun Jan 13, 2013 3:38 pm
Location: Stratford Upon Avon - UK

Re: Top triple clamp that will fit the 650.

Postby jcasey007 » Thu Mar 26, 2015 7:34 am

Yes they should fit, because you will end up with two holes (from the original clamp), you will need to tidy it up with a blanking plate (I used 3mm copper as it suited the style) and under I used large, thick washers as it is not flat.

you could build up the dips underneath (and holes) with aluminium weld, Next time I take it off I will do this

cheers

Jim


User avatar
WnRn
Posts: 40
Joined: Mon Feb 23, 2015 6:23 am
Location: Central Coast NSW AUstralia
Contact:

Re: Top triple clamp that will fit the 650.

Postby WnRn » Thu Mar 26, 2015 1:28 pm

That is perfect. I really like the brass you have used.

User avatar
Volker_P
Posts: 5339
Joined: Mon Mar 06, 2006 1:53 am
Location: southern Germany

Re: Top triple clamp that will fit the 650.

Postby Volker_P » Fri Mar 27, 2015 2:30 am

I hope this is only a surface finish.
I would not like to have brass bolts and nuts at the steering (and hardly anywhere else at a motorcycle, too).
Cosky's great (free) online manual: http://cosky0.tripod.com

forum links to common technical issues

jcasey007
Posts: 225
Joined: Sun Jan 13, 2013 3:38 pm
Location: Stratford Upon Avon - UK

Re: Top triple clamp that will fit the 650.

Postby jcasey007 » Fri Mar 27, 2015 6:52 am

No these bolts are high grade stainless steel that I copper plated the heads (like every bolt on the bike)
